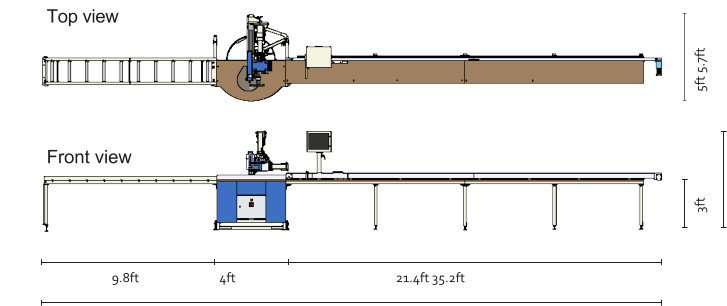

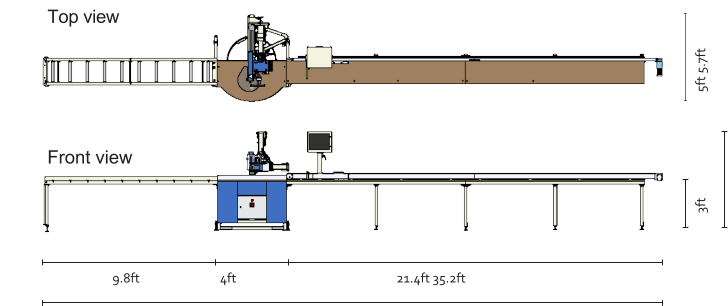

9.8ft 4ft 21.4ft 35.2ft 3ft 5ft 5.7ft Front view Top view

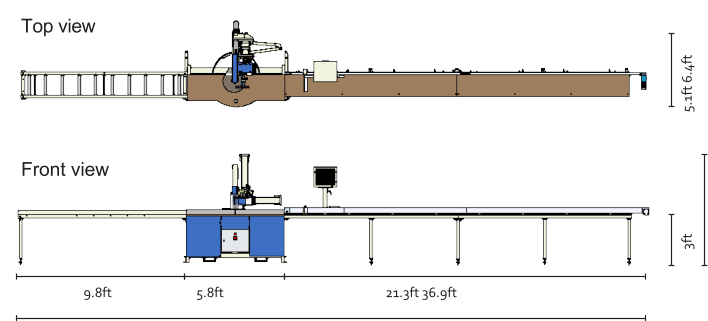

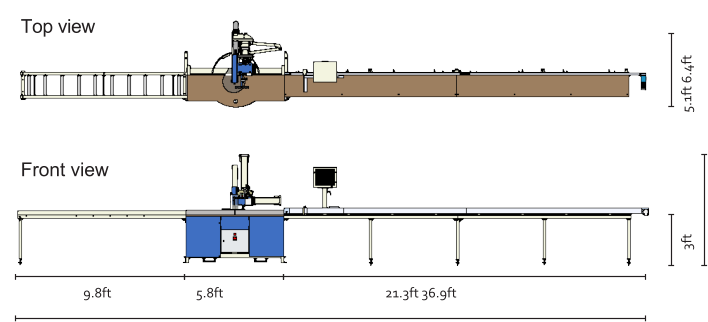

9.8ft 5.8ft 21.3ft 36.9ft 3ft 5.1ft 6.4ft Front view Top view
RS Plate-Marker
The Rapid Stop Plate-Marker features automated length stop used for marking wall plates for part locations.

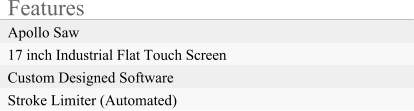

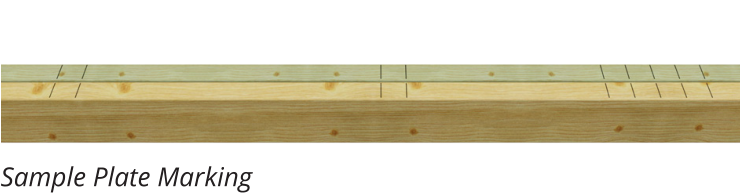

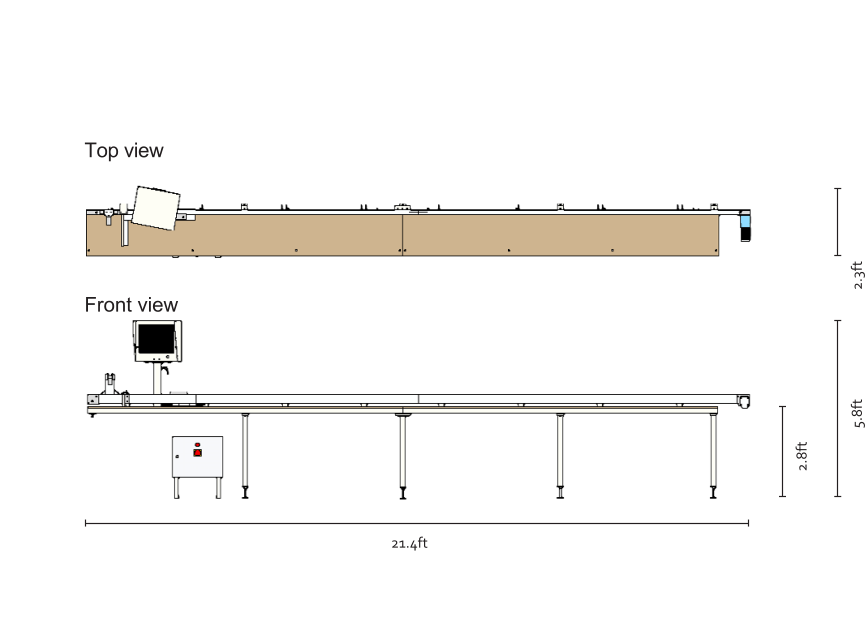

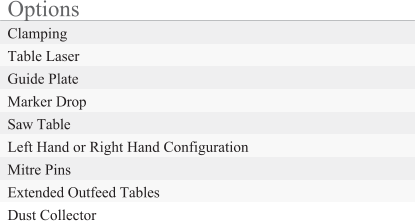

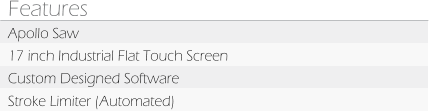

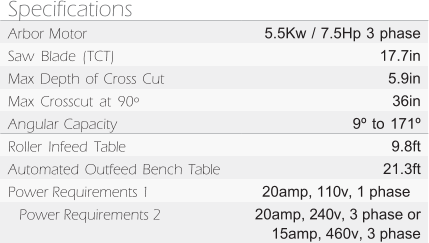

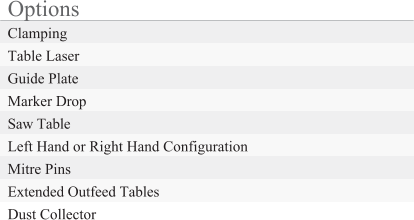

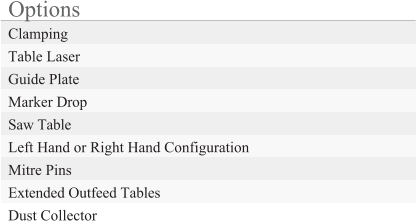

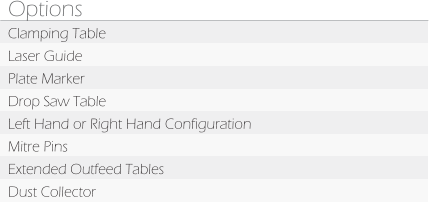

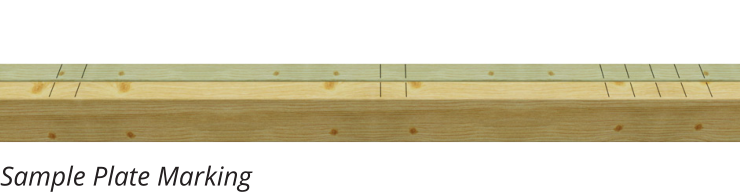

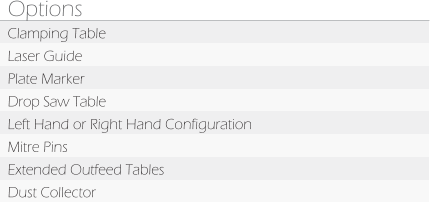

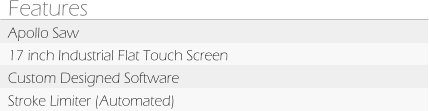

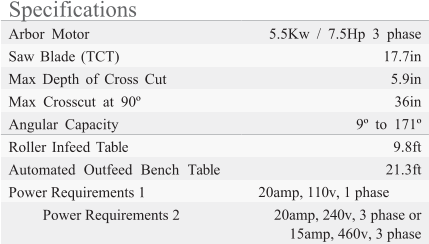

Sample Plate Marking 21.4ft 2.8ft 5.8ft 2.3ft Front view Top view Specifications Arbor Motor 5.5Kw / 7.5Hp 3 phase Saw Blade (TCT) 17.7in Max Depth of Cross Cut 5.9in Max Crosscut at 90º 36in Angular Capacity 9º to 171º Roller Infeed Table 9.8ft Automated Outfeed Bench Table 21.3ft Power Requirements 1 20amp, 110v, 1 phase  Power Requirements 2 20amp, 240v, 3 phase or 15amp, 460v, 3 phase Features Apollo Saw 17 inch Industrial Flat Touch Screen Custom Designed Software Stroke Limiter (Automated) Options Clamping Table Laser Guide Plate Marker Drop Saw Table Left Hand or Right Hand Configuration Mitre Pins Extended Outfeed Tables Dust Collector Specifications Arbor Motor 4Kw / 5.5Hp 3 phase Saw Blade (TCT) 17.7in Max Depth of Cross Cut 5.9in Max Crosscut at 90º 24in Angular Capacity 9º to 171º Roller Infeed Table 9.8ft Automated Outfeed Bench Table 21.4ft Power Requirements 1 20amp, 110v, 1 phase  Power Requirements 2 20amp, 240v, 3 phase or 15amp, 460v, 3 phase Features Vector Saw 17 inch Industrial Flat Touch Screen Custom Designed Software Options Clamping Table Laser Guide Plate Marker Drop Saw Table Left Hand or Right Hand Configuration Mitre Pins Extended Outfeed Tables Dust Collector Specifications Stop system Travel 20ft Marker Width 1½in Power Requirements 15amp, 110v, 1 phase Features Ideal for timber processors looking to automate the measuring of lengths Stop is accurate to within +/- 0.5mm ( 0.02 inch) Easy operation of stop with touch screen Automated operation simply cut off the list on screen as generated from the detailing office Simply enter the length required (PLC version), the stop moves automatically to the correct length Easily fitted to any SPIDA saw to automate the measuring function  Save time and money.  The SPIDA rapid stop dramatically reduces the time spent measuring lengths  and eliminates the wastage associated with incorrect measuring Cuts sub-components as well as plate with filtering and batching options 2x4 and 2x6 Options The Rapid Stop can be built to a custom length to fit your plant requirements Pneumatic rise and fall marking flap available PLC Touchscreen Can be fitted to most saws

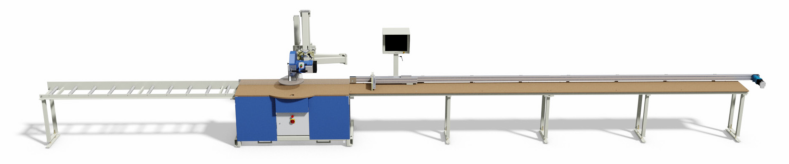

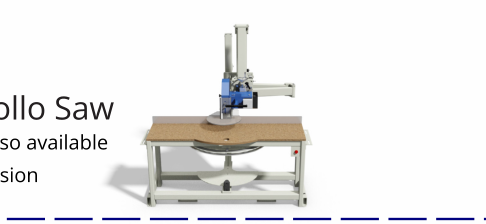

Spida Apollo Saw with Automation
(Common terms for previous products: Mangotech Apollo Saw, Mango Automation, Mangotech Automation, Apollo Saw)
Promo Pictures Truss machinery Connections, Inc equipment
(We are not offering new Radial Saws at this time)
© 2022 Truss Machinery Connections, Inc.
Phone: 800-580-6430
Fax: 800-580-6424

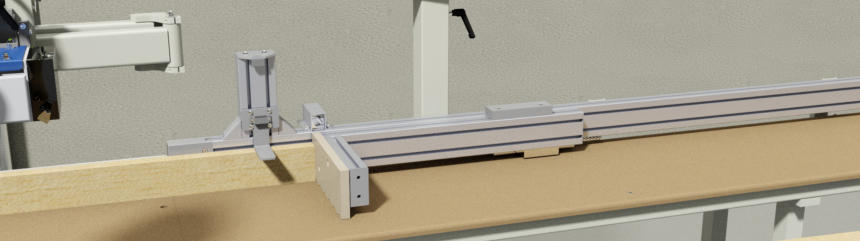

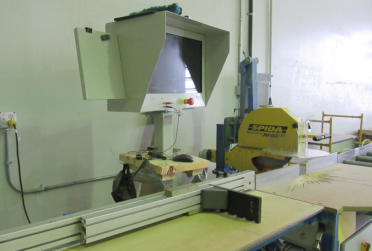

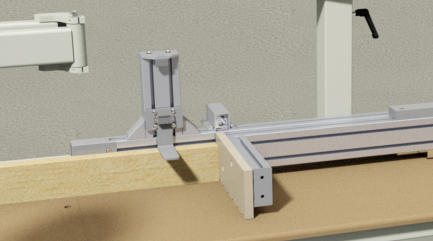

RS Plate-Marker
The Rapid Stop Plate-Marker features automated length stop used for marking wall plates for part locations.

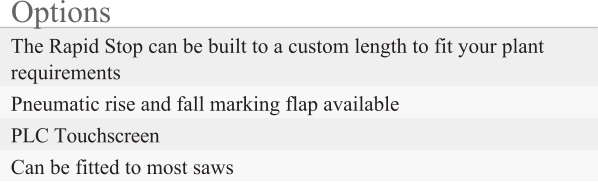

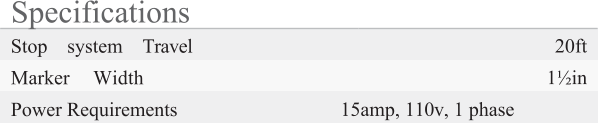

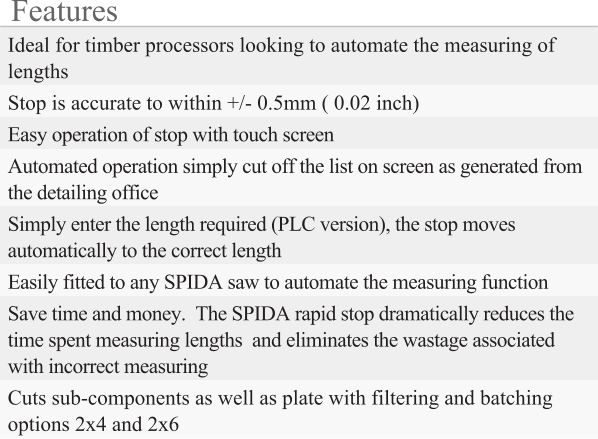

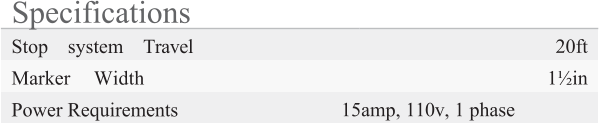

Specifications Stop system Travel 20ft Marker Width 1½in Power Requirements 15amp, 110v, 1 phase Features Ideal for timber processors looking to automate the measuring of lengths Stop is accurate to within +/- 0.5mm ( 0.02 inch) Easy operation of stop with touch screen Automated operation simply cut off the list on screen as generated from the detailing office Simply enter the length required (PLC version), the stop moves automatically to the correct length Easily fitted to any SPIDA saw to automate the measuring function  Save time and money.  The SPIDA rapid stop dramatically reduces the time spent measuring lengths  and eliminates the wastage associated with incorrect measuring Cuts sub-components as well as plate with filtering and batching options 2x4 and 2x6 Options The Rapid Stop can be built to a custom length to fit your plant requirements Pneumatic rise and fall marking flap available PLC Touchscreen Can be fitted to most saws Specifications Arbor Motor 5.5Kw / 7.5Hp 3 phase Saw Blade (TCT) 17.7in Max Depth of Cross Cut 5.9in Max Crosscut at 90º 36in Angular Capacity 9º to 171º Roller Infeed Table 9.8ft Automated Outfeed Bench Table 21.3ft Power Requirements 1 20amp, 110v, 1 phase  Power Requirements 2 20amp, 240v, 3 phase or 15amp, 460v, 3 phase Features Apollo Saw 17 inch Industrial Flat Touch Screen Custom Designed Software Stroke Limiter (Automated) Options Clamping Table Laser Guide Plate Marker Drop Saw Table Left Hand or Right Hand Configuration Mitre Pins Extended Outfeed Tables Dust Collector Specifications Arbor Motor 4Kw / 5.5Hp 3 phase Saw Blade (TCT) 17.7in Max Depth of Cross Cut 5.9in Max Crosscut at 90º 24in Angular Capacity 9º to 171º Roller Infeed Table 9.8ft Automated Outfeed Bench Table 21.4ft Power Requirements 1 20amp, 110v, 1 phase  Power Requirements 2 20amp, 240v, 3 phase or 15amp, 460v, 3 phase Features Vector Saw 17 inch Industrial Flat Touch Screen Custom Designed Software Options Clamping Table Laser Guide Plate Marker Drop Saw Table Left Hand or Right Hand Configuration Mitre Pins Extended Outfeed Tables Dust Collector

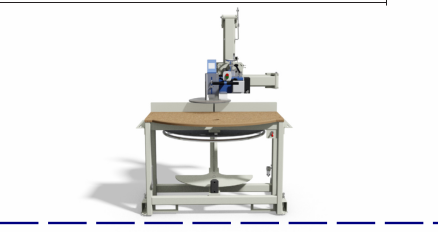

Optional Product Offerings: Spida Vector Saw with Plate Marking Spida Apollo Saw with Plate Marking
