The XL Linear Sawdesign was based on lean manufacturing principles. Put simply it was designed to cut all of your roof truss parts in a just-in-time manner at speeds that match or out perform even the fastest automated component saws.The XL Linear Sawwill cut more wood with less people, with less waste, while dramatically improving material handling and overall truss production plant-wide.Watch the video below for yourself. This XL Linear Saw is fast and efficient and half the price of an Automated Component Saw.So how fast is this saw? In Truss-By-Truss mode this saw has been cutting at an average rate of 2500 bdft per hour with a piece count of about 600 pieces per hour.Using different mixes of parts and material sizes this saw has cut as much as 3000 bdft in one hour and as much as 700 pieces in an hour. In the video above the saw achieved these numbers by operating with two men. One man worked as the lumber picker by placing the wood on the feeder in cut order and the second man worked by stacking the cut material in build order on the out-feed side.The XL Linear Saw has the smallest footprint size of any TCT saw built to date. In the pictures and video you will notice a small detached white cabinet with a touch screen monitor. This cabinet houses all of the electronics for the saw right down to the motion control system, amps and computer. The saw comes with a standard PC that plugs into the motion control system via USB making computer swap outs and upgrades a breeze. The saw is designed around 5 servo motors, a saw motor and 2 sensors making this the most compact and simplistic electronic design ever produced in a full featured truss saw.The standard XL Linear Saw package includes the saw, a standard XL-16 Linear Servo Feeder (feeds 6’ - 16’ lumber), ink jet printing system, computer, touch screen monitor, a waste conveyor and a powered out-feed conveyor (not shown). Available optional equipment include an extended XL-20 Linear Servo Feeder (feeds 6’ - 20’ lumber), Out-Feed Banding & Staging System, and a Automated Material Transport System (MTS). Designed to cut all roof truss parts (2x3 through 2x12) in a just-in-time manner at speeds that match or outperform even the fastest automated component saws. Cut all scarf cuts and any angles (regardless of length and degree).Feed-side inkjet printing system for marking all parts. . Price: $135,000 FOB FLCondition: NewTCT XL Linear Saw w/ Auto-Feeder(Click to Enlarge)Automated Component Saw speed in a Linear Saw!Contact us to find out more! (2500 bdft/600 pcs per hour, average)
Raw power, housed in a compact cabinet, gives this saw the versatility to cut all of your roof parts big or small.
Direct Drive Pivot Servo for fast and accurate angulation
Touch Screen Operator Stand & Electronics Cabinet
Advance Servo Feed System for superior control, accuracy, speed, and acceleration
Plug & Play Hookup!
Nexen Roller Pinion System for fast and accurate scarf cuts
Can’t find a listing on
the machine you
need? Tell us what
you want and we will
locate the machine
that you are looking
for!
The XL Linear Saw design was based on lean
manufacturing principles. Put simply it was designed to cut
all of your roof truss parts in a just-in-time manner at
speeds that match or out perform even the fastest
automated component saws.
The XL Linear Saw will cut more wood with less people,
with less waste, while dramatically improving material
handling and overall truss production plant-wide.
Watch the video below for yourself. This XL Linear Saw is fast and
efficient and half the price of an Automated Component Saw.
So how fast is this saw? In Truss-By-Truss mode this saw has been cutting at an
average rate of 2500 bdft per hour with a piece count of about 600 pieces per hour.
Using different mixes of parts and material sizes this saw has cut as much as 3000
bdft in one hour and as much as 700 pieces in an hour. In the video above the saw
achieved these numbers by operating with two men. One man worked as the
lumber picker by placing the wood on the feeder in cut order and the second man
worked by stacking the cut material in build order on the out-feed side.
The XL Linear Saw has the smallest footprint size of any TCT saw built to date.
In the pictures and video you will notice a small detached white cabinet with a
touch screen monitor. This cabinet houses all of the electronics for the saw right
down to the motion control system, amps and computer. The saw comes with a
standard PC that plugs into the motion control system via USB making computer
swap outs and upgrades a breeze. The saw is designed around 5 servo motors, a
saw motor and 2 sensors making this the most compact and simplistic electronic
design ever produced in a full featured truss saw.
The standard XL Linear Saw package includes the saw, a standard XL-16
Linear Servo Feeder (feeds 6’ - 16’ lumber), ink jet printing system, computer,
touch screen monitor, a waste conveyor and a powered out-feed conveyor (not
shown). Available optional equipment include an extended XL-20 Linear Servo
Feeder (feeds 6’ - 20’ lumber), Out-Feed Banding & Staging System, and a
Automated Material Transport System (MTS).
Designed to cut all roof truss parts (2x3 through 2x12) in a just-in-
time manner at speeds that match or outperform even the fastest
automated component saws. Cut all scarf cuts and any angles
(regardless of length and degree).Feed-side inkjet printing system
for marking all parts. .
Price: $135,000 FOB FL
Condition: New

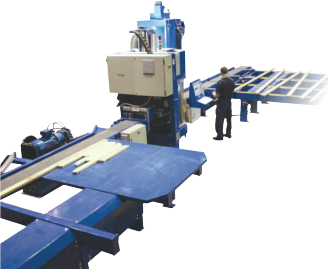

TCT XL Linear Saw w/ Auto-Feeder
(Click to Enlarge)
Automated
Component
Saw speed in a
Linear Saw!
Contact us to
find out more!
(2500 bdft/600 pcs
per hour, average)
