Saws by Monet DeSauw, Inc.

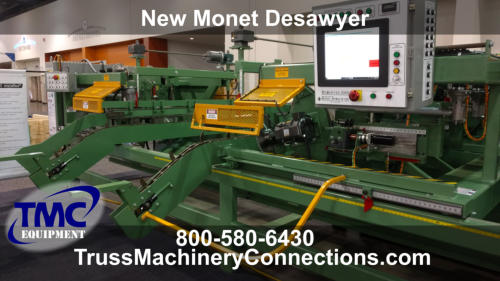

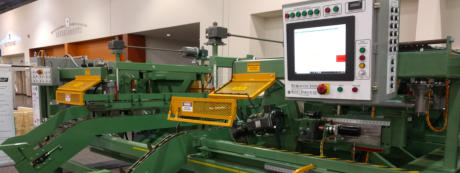

MONET DESAWYER 2000 COMPONENT SAW
The Desawyer 2000 excels in all areas of maintenance, operator ease, and return on investment.
Fully automated, five-bladed saw (complete manual pushbutton backup system) Average setup time is 6-8 seconds, board throughput up to 60 pieces per minute Features off-the-shelf parts, no PROPRIETARY parts. Air brakes on all 5 blades 17" touch screen monitor Heavy duty frame (1/4 x 3 x 6 tubing) Cutting Capacity; 20' in length (Cuts 4x2, 2x3, up to 2x12, and 10" blocks) All quadrants have powered angulation and vertical movements with scales and counter to indicate position. All 5-hp quadrants have powered horizontal movements with indicator scales and pointers. Powered length carriage (1 foot per second) Lumber infeed conveyors (30 degrees) with a feed rate up to 60 boards per minute. Options: DeSawyer ES Model - True closed loop servo controlled component saw
MONET DESAUW B500 COMPONENT SAW
Push button control from one convenient location. Digital readout is standard. Powered length and angle setup. The heaviest, full manual operation saw on the market.
Swing Arm Panel with Digital Readouts Calibration Panel Powered Carriage Powered Lumber Stop Lumber Hold-Downs Horizontal Movement on Front Quadrants Backup Mechanical Tracking Heavy Duty Conveyors Pneumatic Puck-Type Blade Brakes Options: Desauw B500 XE & B500 XEL - PLC Driven Semi-Auto Component Saw with Touch Screen Interface (XEL model also features length setup)

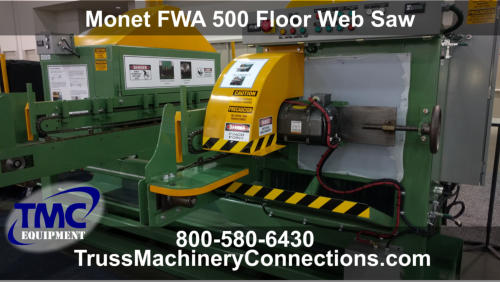

MONET DESAUW FWA 500 FLOOR WEB SAW
Cut floor truss webs the easy way. Fast, safe and precise. Also cut headers, window bucks, door bucks, soffit returns, bridging and fire blocks
Power Angulation Electric Digital Readouts Mechanical Scales Adjustable 90 Degrees Cut-Off Saw Blade Brake on Cut-Off Saw Adjustable Lumber Feeding Magazine. Cuts 3x2, 4x2, & 6x2 Lumber Standard Cutting Capacity 4.5ft. Heavy Duty Feed Conveyor Feed Rate 0-60 Boards per min. Full Length Vibrating Waste Conveyor Options: - Extended Cutting Capacity to 20ft. - Dust Hoods

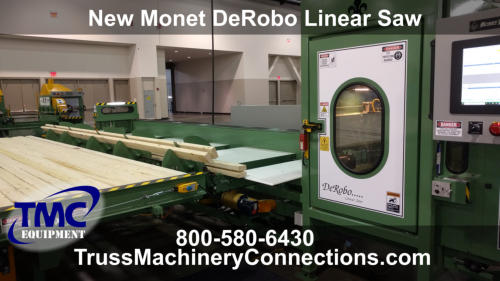

MONET DEROBO LINEAR SAW
Experience a new level of automation with the Monet DeRobo’s fully automated linear saw.
Load cut list from a job file or manually create boards using saw touch-screen Optimizes Lumber Capable of cutting two boards at a time Small pieces delivered to the basket under the machine Cuts webs, chords, stair stringers, rafters and wedges Inks on the side of the board Cuts long skarfs by multi-pluging Uses a 22 inch blade Options: - Live Deck (automatic or manual) - Bunk Stripper

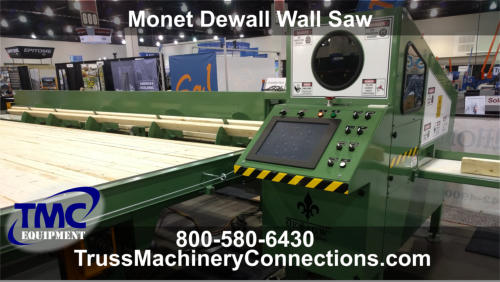

MONET DEWALL WALL PANEL MARKING SAW
Automated wall plate cutter/marking system for wall panels. Cut 90/90 cuts on top and bottom wall plates while marking lumber for easy assembly.
Load cut list from a job file or manually create boards using saw touch-screen Optimizes Lumber Capable of cutting two boards at a time (2x4 to 2x12) Up cut motion is fast and accurate Standard "Side" of the board ink jet printing Safe and efficient to operate Software generates a pick list for optimization Servo controlled pusher for accurate lengths Uses a positive lumber pusher Uses a 22 inch blade, cuts up to 2x12 Options: - Live Deck - Auto Double stack feature for deck - Dust ports - Inker capability on the face of the top and bottom boards - Optional extended skate table for cut boards.
