The work horse of any truss plant is your roof truss equipment. You can find good used roof truss gantry systems, finish roller presses and more at Truss Machinery Connections.

Roof Truss Machinery

(Gantry Systems Page)

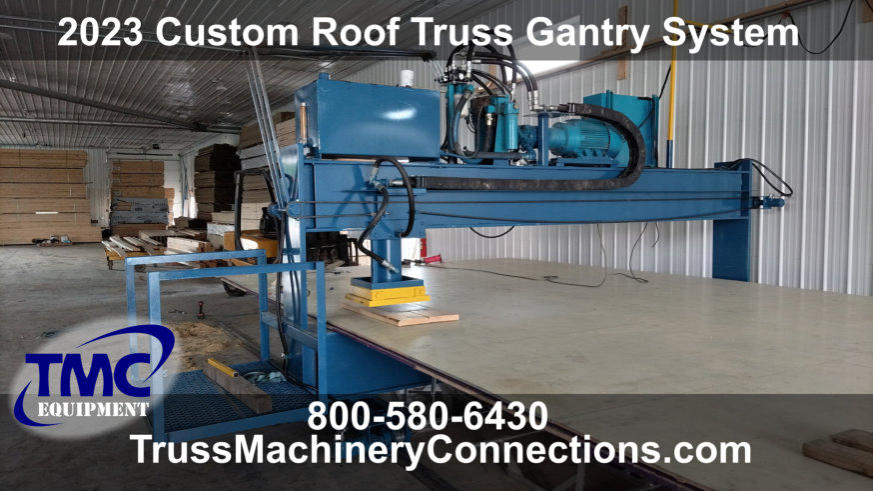

Item No. R40041 2023 Custom Roof Truss Gantry System Single-pass gantry with hydraulic press head. Up to 75 Tons of pressing power, requiring NO secondary operations such as finishing rollers. 18.75“ x 18.75” platen size. Powered by a 30HP motor. Track design with kick-leg table supports. 14’x60’ table surface. Max press height is 4" material. 230V/460V 3 Phase. Includes New Advantech table surface material. Custom built locally in 2023. Price: $74,900 SOLD Condition: Good + Location: OH

Item No. RLZ32361 Virtek Laser Heads (4) 2003 LPS-6R Heads (Working Condition) (1) 2005 LPS-6R Head (Working Condition) (2) LPS-6R Heads (Parts Only) Misc Laser Cables Note: Computer and other equipment is not included Price: $ 16,900 USD SOLD Condition: Good Location: QC Canada

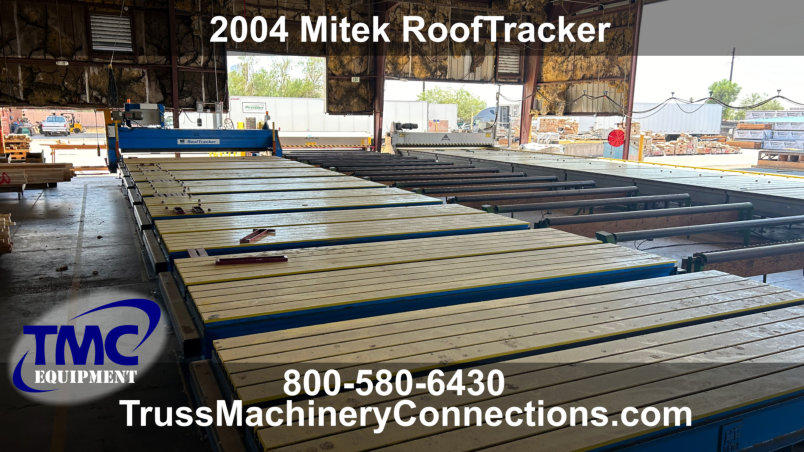

Item No. R32703 Mitek Roof Tracker 2004 Mitek Roof Tracker - Trackless side eject roof truss gantry system. Features (1) Gantry Roller Head with 24” Roll • (8) Steel slotted top tables (55’ working length) • (8) Pop-up Skatewheel Ejectors (3 need some minor repair) • (19) Conveyor roller stands w/ rollers (8 powered, 3 of the powered need some minor repair) • (7) Pop-up Skatewheel Receivers Price: $ 199,900 Condition: Good + Location: PA

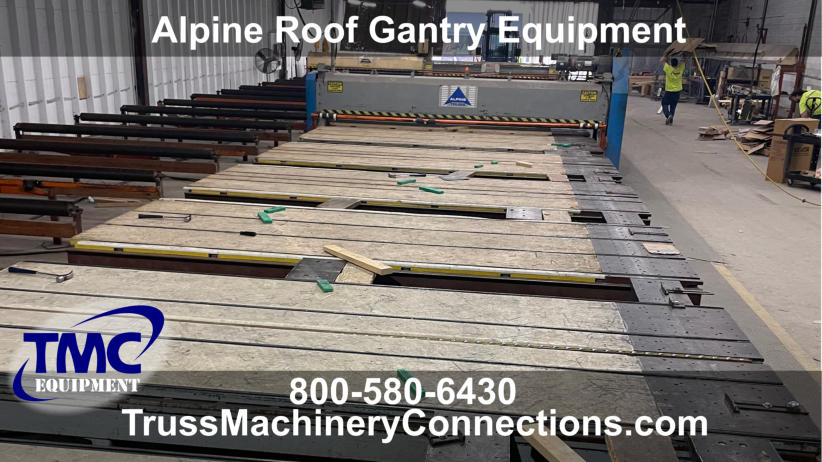

Item No. R32704 Alpine Gantry System 1990 Alpine track style side eject roof truss gantry system. Features • (1) 14’ Roller Gantry Head with 18” Roll • (9) Wood top tables (63’ working length) • (5) Pop-up Skatewheel Ejectors • (5) Pop-up Skatewheel Receivers Note: Includes track and overhead electric cable. Wood tops have wear and will need to be replaced. Set of new bogie wheels included. Price: $94,900 Condition: Good Location: PA

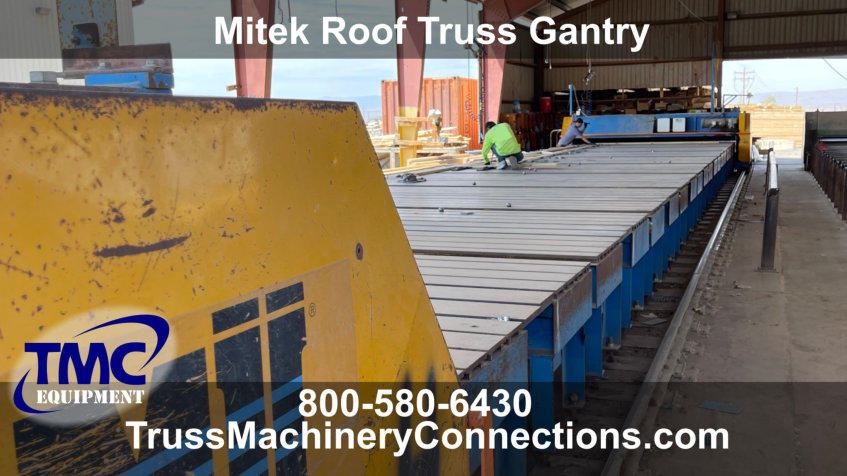

Item No. R31992 Mitek Roof Truss Gantry • Track System - Side Eject • (2) Roller Gantry Heads • Working Table Area 86’-4”L x 14’W • (11) 6’-4” table sections with 20” walk-throughs (section is made up of 2 small tables and a table bridge) • Steel slotted table tops • (11) Skatewheel table ejectors • Includes overhead electric cable and 102’ of gantry track (each side) Note: Does not include exit roller conveyor of finish roller press. Also includes an additional 6’-4” table section that was not installed. Price: $ 149,900 Condition: Good Location: UT

Item No. R30681 Hydro-Air Mono-Press C-Clamp & Pedestal Equipment • (3) C-Clamps (one is parts only) 9 ¼ “ X 16 ½” Platens • (3) Counter-Balance Arms • (35) Magnetic Jigging Pedestals 24"L x 18.5"W x 34"H • 80’ Over-Head Trolley Beam • Hydraulics Steel floor sections included: (19) 4’x10’, (7) 2’x10’ & (4) 4’x20’ Also includes a Metracut centerline saw (parts only) & a Speedcut floor web saw Price: $ 24,900 Location: AL

Item No. R03501 SL-Laser Green Projection System (2 Complete 6 heads systems) High-Performance Projection Laser Systems in working condition. Each head can span up to 20’ • 12 Laser Heads Model= SL 4002 -05 GBPU - (4) 2005, (4) 2004, (2) 2007, 2008, 2011 • 2 Parts only heads or could be repaired (2005 & 2007) • (2) SL-Laser Integrated Control Panel (2007) • Hardware for mounting Price: $127,900 $99,900 $89,900 Condition: Good Location: QC Canada

Item No. W22551 Square1/Spida Trackless Gantry System • 100' table system with steel tops (slotted Wegit jigging) and parking stations • Sloped Ejectors • Powered Transfer Rollers (No Stands) • (No Exit Roller Conveyor Included) • (1) Roller Gantry Head • (1) Finish Roller Press • Overhead Electrical Note: Currently in production. WIll need some maintenance when reinstalling system including adjusting roller gantry tracking and some welding Price: $290,000 Condition: Good Location: GA

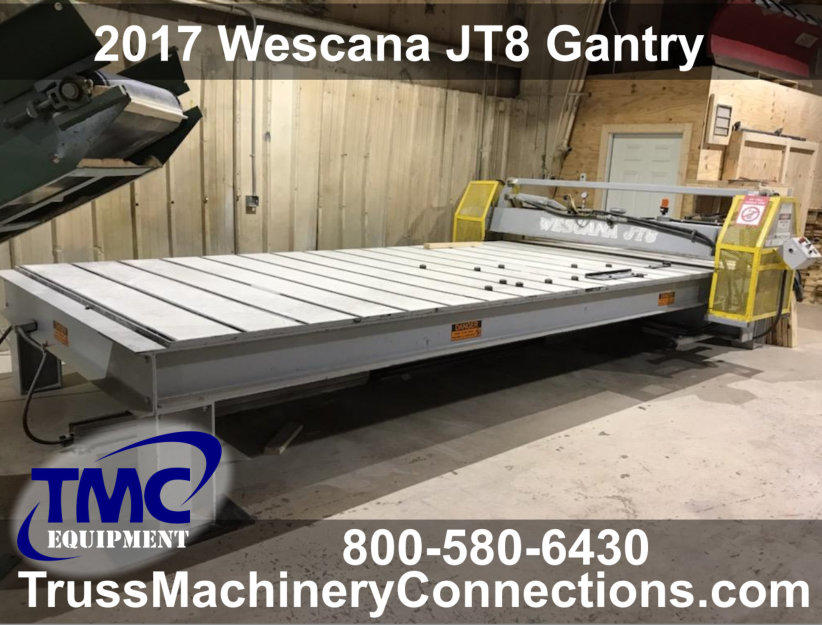

Item No. R21231 2017 Wescana Gantry JT8 • 8’ x 20’ Gantry Table • 7.5 hp, 3 phase, 208/230/460/575VAC, 60Hz motor • 35 Ton hydraulic pressing capacity • 96” x 14" pressing platen • 4" maximum press opening height • Manual puck jigging 12” O/C slotted table top • Build Jack Trusses and More Noted: Ready to go to work. Available now. Price: $52,900 Condition: Good + Location: MI

2016 Alpine Easy Rider w/ Autoset C4 Jigging

Serious inquires only - Must submit a contact form

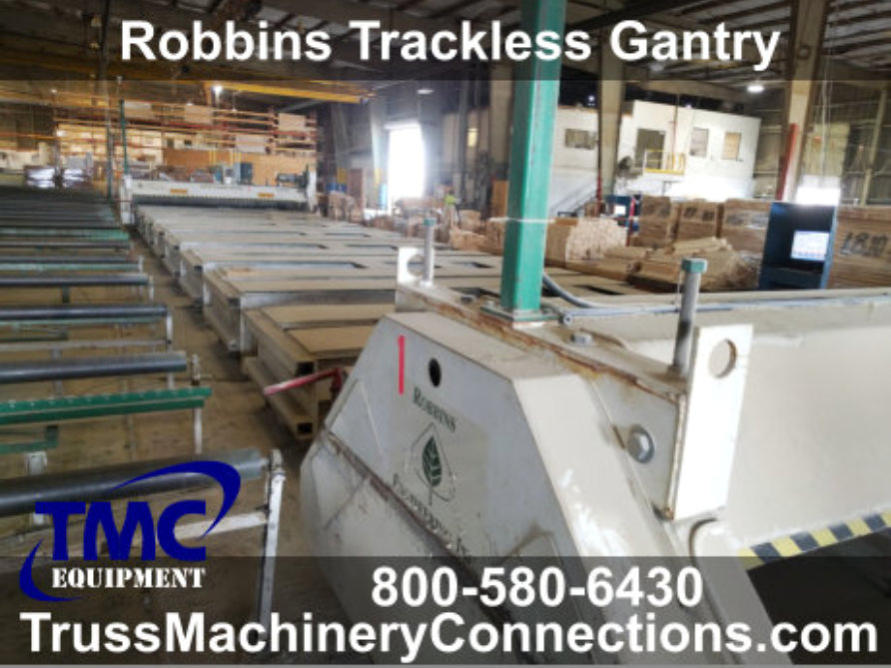

Item No. R91283 Robbins Trackless Gantry (No-Rail) No-Rail Super Torque Gantry 2. (103’ Working Length) Roof truss gantry features Side-Eject, Trackless System with (2) Robbin Gantry Heads with 24” roll & upgraded safety sensors, (15 ) Gantry Tables (5’x14’) with plastic tops & unistrut, (15) Skate-Wheel Truss Ejectors, (8) Skate-Wheel Truss Receivers. Also includes overhead S/O electric cable, 2 gantry parking areas and (32) aisle pad covers. 230/460V - 3 Phase Power (Currently configured for 240V). Price: $Make Offer Condition: Good Location: FL

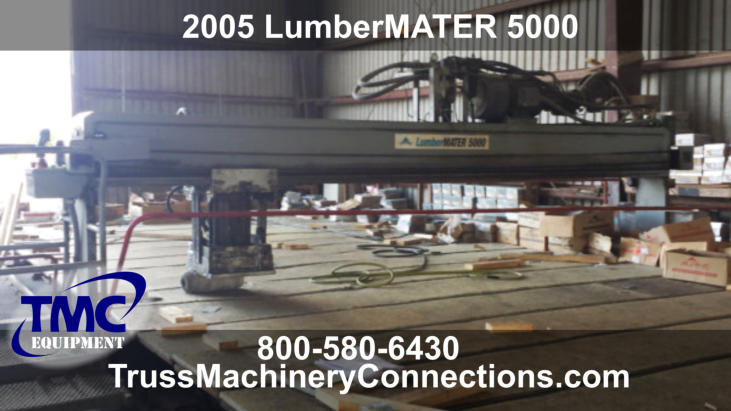

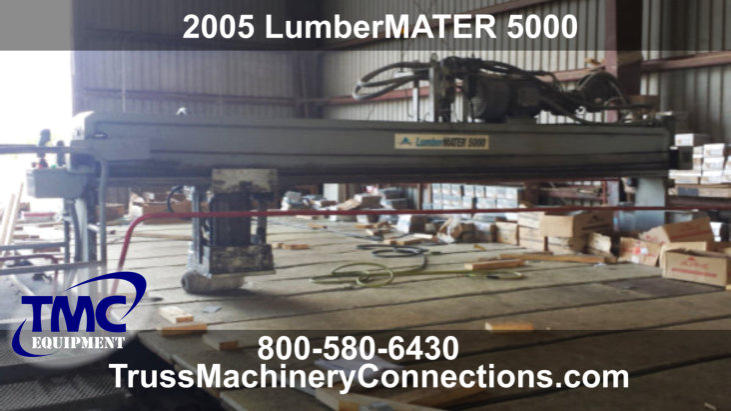

Item No. R80461 2005 LumberMATER 5000 LumberMater with 15’x60’ Table with plastic tops and jigging struts. Kick-leg table design, powered gantry with vertical hydraulic pressing head. Equipped with a ride-on operator platform with joy-stick control. Price: $ Condition: Good Location: FL

Item No. R72972 2002 Pacific Automation Auto-10 Capable of handling 2”x4” and 4”x2” trusses with no adjustment, ideal for smaller trusses, hips, jacks, floor, and garage trusses as well as wall production using connector plates for 2”x4” or 2”x6” walls. No finish pressing required. Features include joystick control, and plastic Table Top and rider platform. 10’x40’ Table Price: $54.800 Condition: Good Location: PA

[Ratings: Fair = 1-2, Good = 3-5, Very Good = 6-8, Excellent = 9-10]
